causal-learn Tutorial 16: End-To-End Causal Discovery Case Study

This notebook pulls the tutorial pieces together into a complete causal discovery workflow. Instead of focusing on one algorithm, we will walk through the full lifecycle of an applied discovery analysis: problem framing, data dictionary, data audit, domain constraints, candidate graph estimation, stability checks, final graph selection, and report-ready limitations.

The case study is synthetic and company-neutral. We simulate a small product-engagement dataset where the true graph is known for teaching. In a real project, the true graph would not be available, so the same workflow would rely more heavily on domain review, stability checks, and follow-up validation.

Estimated runtime: about 2-4 minutes. The notebook runs PC, GES, DirectLiNGAM, FCI, and several bootstrap checks on a small dataset.

Learning Goals

By the end of this notebook, you should be able to:

• turn a vague discovery question into a concrete graph target;
• document variables, timing, and domain constraints before running algorithms;
• audit a discovery dataset for missingness, scale, dependence, and suspicious structure;
• compare candidate graphs from PC, GES, and DirectLiNGAM;
• use background knowledge to orient edges that time order already rules out;
• summarize edge consensus and bootstrap stability;
• produce a final candidate graph with appropriate caveats.

Notebook Flow

The workflow follows the order a careful discovery project should use:

1. Define the case-study question and variable dictionary.
2. Simulate a teaching dataset and save the synthetic truth.
3. Audit the observed data before discovery.
4. Encode domain timing constraints.
5. Run candidate discovery algorithms.
6. Compare graphs to synthetic truth and to each other.
7. Check tuning and bootstrap stability.
8. Use FCI as a hidden-confounding screen.
9. Assemble a final candidate graph and report-ready edge table.
10. Save outputs and limitations.

Case-Study Question

Suppose a product analytics team wants to understand the causal structure behind a simple engagement funnel. They have observational measurements of user need, catalog fit, onboarding friction, discovery quality, early engagement, support contact, and retention value.

The discovery question is:

Which measured factors appear to be direct causes of downstream engagement and retention outcomes, after accounting for the rest of the observed system?

This is a graph-discovery question, not an effect-estimation question. The output is a candidate causal graph that can guide later experiments, quasi-experimental studies, or targeted causal effect estimation.

Why This Is End-To-End

An end-to-end discovery workflow is not just an algorithm call. The algorithm is one component inside a larger discipline:

• define the time order and forbidden directions before looking at graph output;
• inspect the data-generating plausibility of algorithm assumptions;
• compare several method families rather than trusting one graph;
• check edge stability across reasonable perturbations;
• label final edges by evidence strength rather than pretending every edge is equally supported.

That full workflow is what this notebook demonstrates.

Setup

This cell imports the scientific Python stack, causal-learn algorithms, and graph drawing utilities. It also sets up output folders and silences known notebook-environment warnings.

from pathlib import Path
import os
import time
import warnings

PROJECT_ROOT = Path.cwd().resolve()
if PROJECT_ROOT.name == "causal_learn":
    PROJECT_ROOT = PROJECT_ROOT.parents[2]

OUTPUT_DIR = PROJECT_ROOT / "notebooks" / "tutorials" / "causal_learn" / "outputs"
DATASET_DIR = OUTPUT_DIR / "datasets"
FIGURE_DIR = OUTPUT_DIR / "figures"
TABLE_DIR = OUTPUT_DIR / "tables"
REPORT_DIR = OUTPUT_DIR / "reports"
MATPLOTLIB_CACHE_DIR = OUTPUT_DIR / "matplotlib_cache"

for directory in [DATASET_DIR, FIGURE_DIR, TABLE_DIR, REPORT_DIR, MATPLOTLIB_CACHE_DIR]:
    directory.mkdir(parents=True, exist_ok=True)

os.environ.setdefault("MPLCONFIGDIR", str(MATPLOTLIB_CACHE_DIR))
warnings.filterwarnings("ignore", category=FutureWarning)
warnings.filterwarnings("ignore", message="IProgress not found.*")
warnings.filterwarnings("ignore", message="Using 'local_score_BIC_from_cov' instead for efficiency")

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from matplotlib.patches import FancyArrowPatch, FancyBboxPatch
from IPython.display import display
from sklearn.preprocessing import StandardScaler

from causallearn.search.ConstraintBased.PC import pc
from causallearn.search.ConstraintBased.FCI import fci
import causallearn.search.ScoreBased.GES as ges_module
from causallearn.search.ScoreBased.GES import ges
from causallearn.search.FCMBased.lingam.direct_lingam import DirectLiNGAM
from causallearn.graph.GraphNode import GraphNode
from causallearn.utils.PCUtils.BackgroundKnowledge import BackgroundKnowledge

NOTEBOOK_PREFIX = "16"
RANDOM_SEED = 42
sns.set_theme(style="whitegrid", context="notebook")
plt.rcParams.update({"figure.dpi": 120, "savefig.dpi": 160})

print(f"Project root: {PROJECT_ROOT}")
print(f"Outputs: {OUTPUT_DIR}")

Project root: /home/apex/Documents/ranking_sys
Outputs: /home/apex/Documents/ranking_sys/notebooks/tutorials/causal_learn/outputs

The output folder is shared with the rest of the causal-learn tutorial series. Every artifact created here starts with 16_.

Package Versions

Saving package versions is part of reproducible graph discovery. Small numerical and graph-format differences can matter when comparing discovered structures.

import causallearn
import sklearn

version_table = pd.DataFrame(
    [
        {"package": "numpy", "version": np.__version__},
        {"package": "pandas", "version": pd.__version__},
        {"package": "scikit-learn", "version": sklearn.__version__},
        {"package": "causal-learn", "version": getattr(causallearn, "__version__", "not exposed")},
    ]
)
version_table.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_package_versions.csv", index=False)
display(version_table)

	package	version
0	numpy	2.4.4
1	pandas	3.0.2
2	scikit-learn	1.6.1
3	causal-learn	not exposed

The version table is now saved. This is useful when a graph needs to be reproduced or compared with another run later.

GES BIC Compatibility Wrapper

The GES BIC score needs a small local compatibility wrapper in this environment. The wrapper keeps the same BIC scoring logic while safely converting one-element matrix results into Python scalars.

def local_score_BIC_from_cov(Data, i, PAi, parameters=None):
    """Safe local BIC score used by GES in this notebook."""
    cov, n = Data
    lambda_value = 0.5 if parameters is None or parameters.get("lambda_value") is None else parameters.get("lambda_value")
    parent_indices = list(PAi)
    if len(parent_indices) == 0:
        residual_variance = cov[i, i]
    else:
        yX = cov[np.ix_([i], parent_indices)]
        XX = cov[np.ix_(parent_indices, parent_indices)]
        beta = np.linalg.solve(XX, yX.T)
        residual_variance = cov[i, i] - float((yX @ beta).item())
    residual_variance = max(float(residual_variance), 1e-12)
    return float(-(n / 2) * np.log(residual_variance) - (len(parent_indices) + 1) * lambda_value * np.log(n) / 2)


ges_module.local_score_BIC_from_cov = local_score_BIC_from_cov
print("GES BIC score wrapper is active for this notebook session.")

GES BIC score wrapper is active for this notebook session.

The wrapper only affects this notebook session. It does not edit causal-learn on disk.

Data Dictionary

The case study uses seven measured variables. The timing column captures a rough process order. This timing information becomes background knowledge later, because later outcomes should not cause earlier setup variables.

VARIABLES = [
    "baseline_need",
    "catalog_fit",
    "onboarding_friction",
    "discovery_quality",
    "early_engagement",
    "support_contact",
    "retention_value",
]
VAR_INDEX = {name: i for i, name in enumerate(VARIABLES)}

DISPLAY_LABELS = {
    "baseline_need": "baseline\nneed",
    "catalog_fit": "catalog\nfit",
    "onboarding_friction": "onboarding\nfriction",
    "discovery_quality": "discovery\nquality",
    "early_engagement": "early\nengagement",
    "support_contact": "support\ncontact",
    "retention_value": "retention\nvalue",
}

variable_dictionary = pd.DataFrame(
    [
        {
            "variable": "baseline_need",
            "plain_language_meaning": "Pre-existing user need or motivation before the experience starts.",
            "timing_tier": 0,
            "role": "upstream context",
        },
        {
            "variable": "catalog_fit",
            "plain_language_meaning": "How well available items fit the user's likely interests.",
            "timing_tier": 1,
            "role": "upstream context",
        },
        {
            "variable": "onboarding_friction",
            "plain_language_meaning": "Early confusion, setup cost, or friction before meaningful use.",
            "timing_tier": 2,
            "role": "early barrier",
        },
        {
            "variable": "discovery_quality",
            "plain_language_meaning": "Quality of the initial discovery or recommendation experience.",
            "timing_tier": 3,
            "role": "candidate mechanism",
        },
        {
            "variable": "early_engagement",
            "plain_language_meaning": "Depth of initial usage after discovery.",
            "timing_tier": 4,
            "role": "intermediate outcome",
        },
        {
            "variable": "support_contact",
            "plain_language_meaning": "Whether the user needed help or support after early use.",
            "timing_tier": 5,
            "role": "friction outcome",
        },
        {
            "variable": "retention_value",
            "plain_language_meaning": "Downstream user value or retention signal.",
            "timing_tier": 6,
            "role": "final outcome",
        },
    ]
)
variable_dictionary.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_variable_dictionary.csv", index=False)
display(variable_dictionary)

	variable	plain_language_meaning	timing_tier	role
0	baseline_need	Pre-existing user need or motivation before th...	0	upstream context
1	catalog_fit	How well available items fit the user's likely...	1	upstream context
2	onboarding_friction	Early confusion, setup cost, or friction befor...	2	early barrier
3	discovery_quality	Quality of the initial discovery or recommenda...	3	candidate mechanism
4	early_engagement	Depth of initial usage after discovery.	4	intermediate outcome
5	support_contact	Whether the user needed help or support after ...	5	friction outcome
6	retention_value	Downstream user value or retention signal.	6	final outcome

The tier order does not prove causality. It only encodes directions that are impossible or implausible given the measurement process.

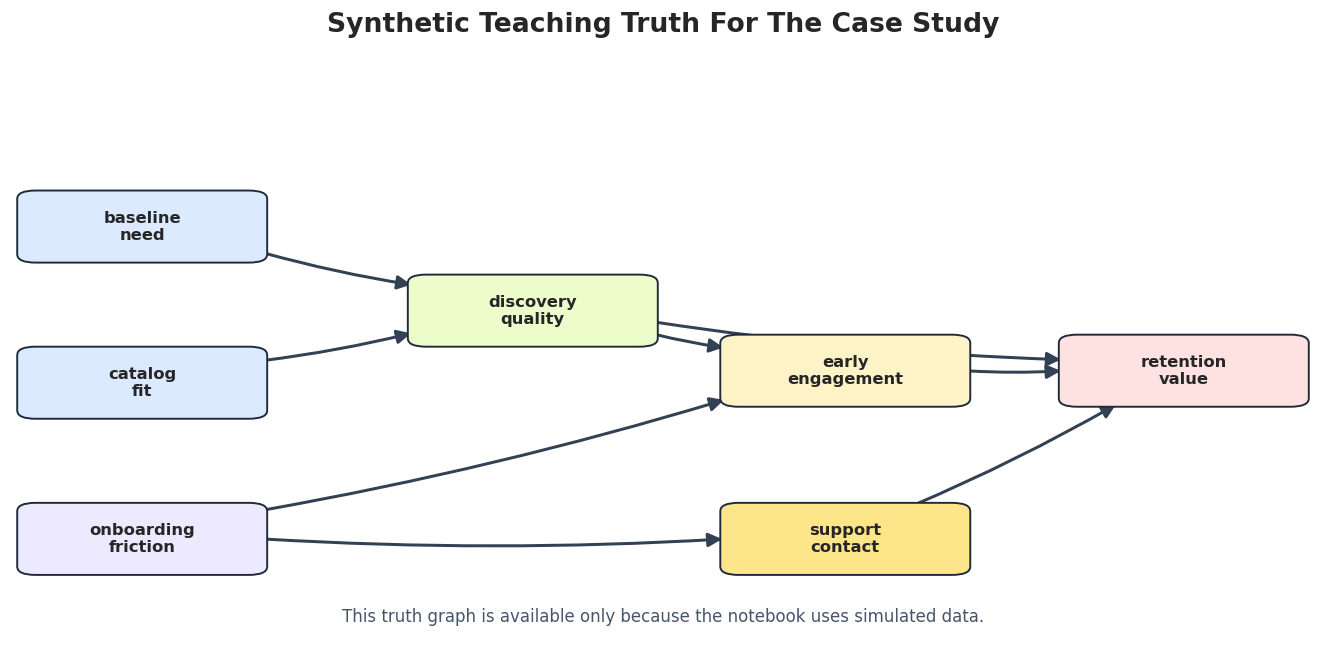

Synthetic Truth For Teaching

Because this is a tutorial, we simulate the dataset from a known graph. In a real case study, this table would not exist; it is included here so we can evaluate how the workflow behaves.

TRUE_EDGES = [
    ("baseline_need", "discovery_quality"),
    ("catalog_fit", "discovery_quality"),
    ("onboarding_friction", "early_engagement"),
    ("onboarding_friction", "support_contact"),
    ("discovery_quality", "early_engagement"),
    ("discovery_quality", "retention_value"),
    ("early_engagement", "retention_value"),
    ("support_contact", "retention_value"),
]

true_edge_table = pd.DataFrame(TRUE_EDGES, columns=["source", "target"])
true_edge_table.insert(0, "run", "truth")
true_edge_table["edge_type"] = "-->"
true_edge_table = true_edge_table[["run", "source", "edge_type", "target"]]
true_edge_table.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_true_edges.csv", index=False)
display(true_edge_table)

	run	source	edge_type	target
0	truth	baseline_need	-->	discovery_quality
1	truth	catalog_fit	-->	discovery_quality
2	truth	onboarding_friction	-->	early_engagement
3	truth	onboarding_friction	-->	support_contact
4	truth	discovery_quality	-->	early_engagement
5	truth	discovery_quality	-->	retention_value
6	truth	early_engagement	-->	retention_value
7	truth	support_contact	-->	retention_value

The true graph is intentionally not too dense. That keeps the case study readable while still including multiple parents, downstream mediation, and a support-related pathway.

Simulate The Case-Study Dataset

The simulator generates a clean observational dataset from the true graph. The noise is non-Gaussian so DirectLiNGAM has a fair chance to orient edges, while PC and GES still have useful structure to recover.

def simulate_case_study_data(n_samples=900, seed=RANDOM_SEED, noise_scale=0.80, hidden_strength=0.0):
    """Simulate the end-to-end case-study dataset."""
    rng = np.random.default_rng(seed)
    hidden_context = rng.laplace(loc=0.0, scale=1.0, size=n_samples)

    baseline_need = rng.laplace(loc=0.0, scale=1.0, size=n_samples) + hidden_strength * hidden_context
    catalog_fit = rng.laplace(loc=0.0, scale=1.0, size=n_samples)
    onboarding_friction = rng.laplace(loc=0.0, scale=1.0, size=n_samples)

    discovery_quality = (
        0.70 * baseline_need
        + 0.80 * catalog_fit
        + rng.laplace(loc=0.0, scale=noise_scale, size=n_samples)
    )
    early_engagement = (
        0.80 * discovery_quality
        - 0.55 * onboarding_friction
        + rng.laplace(loc=0.0, scale=noise_scale, size=n_samples)
    )
    support_contact = (
        0.70 * onboarding_friction
        + rng.laplace(loc=0.0, scale=noise_scale, size=n_samples)
    )
    retention_value = (
        0.30 * discovery_quality
        + 0.65 * early_engagement
        - 0.55 * support_contact
        + rng.laplace(loc=0.0, scale=noise_scale, size=n_samples)
        + hidden_strength * hidden_context
    )

    raw_df = pd.DataFrame(
        {
            "baseline_need": baseline_need,
            "catalog_fit": catalog_fit,
            "onboarding_friction": onboarding_friction,
            "discovery_quality": discovery_quality,
            "early_engagement": early_engagement,
            "support_contact": support_contact,
            "retention_value": retention_value,
        }
    )
    scaled_df = pd.DataFrame(StandardScaler().fit_transform(raw_df), columns=VARIABLES)
    return scaled_df


case_df = simulate_case_study_data()
case_df.to_csv(DATASET_DIR / f"{NOTEBOOK_PREFIX}_case_study_observed_data.csv", index=False)
display(case_df.head())
print(f"Dataset shape: {case_df.shape}")

	baseline_need	catalog_fit	onboarding_friction	discovery_quality	early_engagement	support_contact	retention_value
0	-0.103157	0.167717	0.337250	-0.174835	-1.521579	0.505952	-1.408331
1	-0.523238	0.192072	0.064646	-0.718328	-0.563849	-0.395677	-0.361103
2	-1.766077	-0.932466	-0.151183	-1.474795	-0.890423	-0.203887	-0.784043
3	-0.083583	0.337327	0.676568	-0.175165	-0.405918	-0.143214	-0.618329
4	1.727252	0.295308	0.383671	1.974841	0.797577	0.359012	0.997640

Dataset shape: (900, 7)

The saved dataset contains only observed variables. The hidden-context option is reserved for a later stress check and is not present in the baseline case-study data.

Data Audit: Shape, Missingness, And Scale

Before discovery, we check the basics: missing values, variance, and range. A graph search can look sophisticated while quietly failing because of ordinary data quality problems.

data_audit = pd.DataFrame(
    {
        "mean": case_df.mean(),
        "std": case_df.std(),
        "min": case_df.min(),
        "max": case_df.max(),
        "missing_rate": case_df.isna().mean(),
        "unique_values": case_df.nunique(),
    }
).reset_index(names="variable")

data_audit.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_data_audit.csv", index=False)
display(data_audit.round(3))

	variable	mean	std	min	max	missing_rate	unique_values
0	baseline_need	0.0	1.001	-4.942	4.751	0.0	900
1	catalog_fit	-0.0	1.001	-4.796	5.404	0.0	900
2	onboarding_friction	-0.0	1.001	-4.448	4.542	0.0	900
3	discovery_quality	-0.0	1.001	-3.288	3.896	0.0	900
4	early_engagement	0.0	1.001	-2.940	4.630	0.0	900
5	support_contact	-0.0	1.001	-4.542	3.886	0.0	900
6	retention_value	-0.0	1.001	-3.051	3.431	0.0	900

The audit is clean: no missing values, no constant columns, and standardized scales. That lets the rest of the notebook focus on graph assumptions rather than preprocessing repairs.

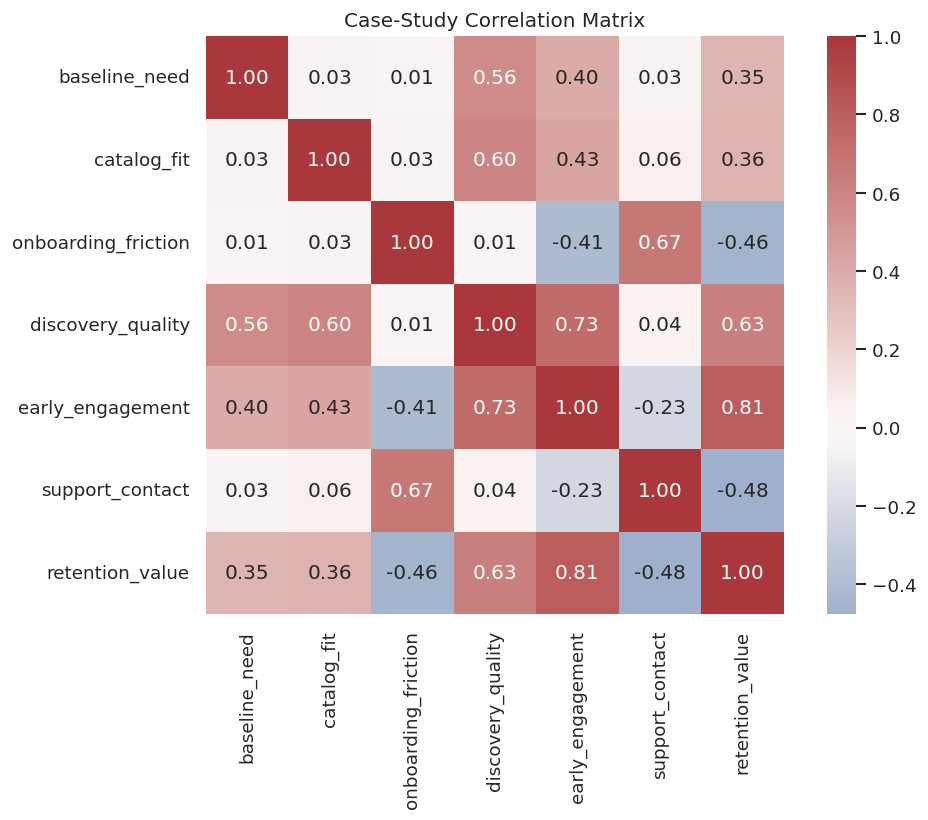

Data Audit: Correlations

Correlation does not identify causality, but it is a useful diagnostic. It helps reveal whether the simulated data contain the expected dependence structure before we run graph algorithms.

correlation_matrix = case_df.corr()
correlation_matrix.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_correlation_matrix.csv")

fig, ax = plt.subplots(figsize=(9, 7))
sns.heatmap(correlation_matrix, cmap="vlag", center=0, annot=True, fmt=".2f", square=True, ax=ax)
ax.set_title("Case-Study Correlation Matrix")
plt.tight_layout()
fig.savefig(FIGURE_DIR / f"{NOTEBOOK_PREFIX}_correlation_matrix.png", dpi=160, bbox_inches="tight")
plt.show()

The correlations show plausible relationships along the funnel, especially around discovery quality, engagement, and retention value. The graph search will now ask which of those associations look direct after conditioning on other variables.

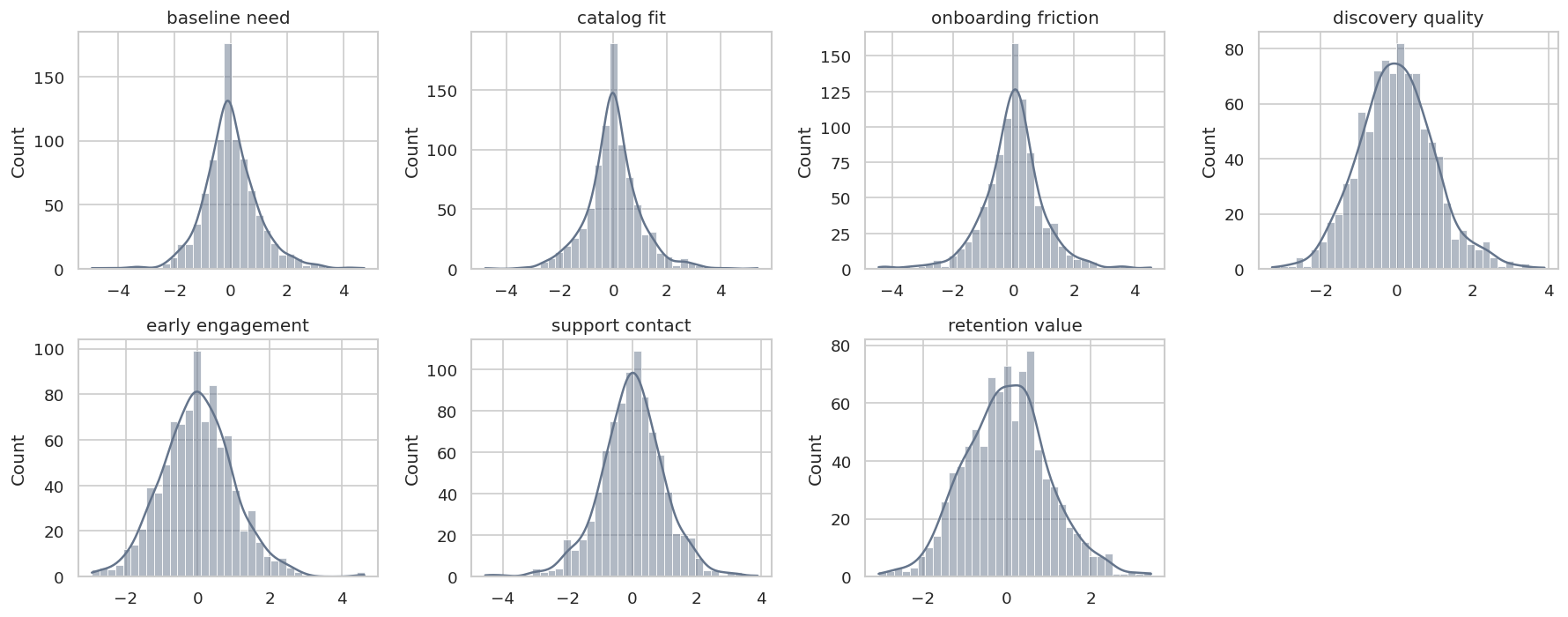

Data Audit: Distribution Shape

Some algorithms rely on distributional clues. DirectLiNGAM, for example, is designed for linear non-Gaussian data. The next cell shows marginal distributions for all variables.

fig, axes = plt.subplots(2, 4, figsize=(15, 6))
axes = axes.flatten()
for ax, variable in zip(axes, VARIABLES):
    sns.histplot(case_df[variable], bins=35, kde=True, color="#64748b", ax=ax)
    ax.set_title(DISPLAY_LABELS[variable].replace("\n", " "))
    ax.set_xlabel("")
for ax in axes[len(VARIABLES):]:
    ax.set_axis_off()
plt.tight_layout()
fig.savefig(FIGURE_DIR / f"{NOTEBOOK_PREFIX}_marginal_distributions.png", dpi=160, bbox_inches="tight")
plt.show()

The variables are not perfectly Gaussian, which makes DirectLiNGAM a reasonable candidate method. This is still only a diagnostic, not a guarantee that LiNGAM assumptions are fully true.

Draw The Teaching Truth

This graph is the synthetic answer key. In a real end-to-end analysis, this figure would be replaced by a domain hypothesis diagram rather than known truth.

def trim_edge_to_box(start, end, box_w=0.16, box_h=0.09, gap=0.012):
    x0, y0 = start
    x1, y1 = end
    dx = x1 - x0
    dy = y1 - y0
    distance = (dx**2 + dy**2) ** 0.5
    if distance == 0:
        return start, end
    ux, uy = dx / distance, dy / distance
    candidates = []
    if abs(ux) > 1e-9:
        candidates.append((box_w / 2) / abs(ux))
    if abs(uy) > 1e-9:
        candidates.append((box_h / 2) / abs(uy))
    offset = min(candidates) + gap
    return (x0 + ux * offset, y0 + uy * offset), (x1 - ux * offset, y1 - uy * offset)


GRAPH_POSITIONS = {
    "baseline_need": (0.10, 0.72),
    "catalog_fit": (0.10, 0.46),
    "onboarding_friction": (0.10, 0.20),
    "discovery_quality": (0.40, 0.58),
    "early_engagement": (0.64, 0.48),
    "support_contact": (0.64, 0.20),
    "retention_value": (0.90, 0.48),
}
GRAPH_COLORS = {
    "baseline_need": "#dbeafe",
    "catalog_fit": "#dbeafe",
    "onboarding_friction": "#ede9fe",
    "discovery_quality": "#ecfccb",
    "early_engagement": "#fef3c7",
    "support_contact": "#fde68a",
    "retention_value": "#fee2e2",
}


def draw_box_graph(edge_df, title, path, note=None, highlight_edges=None):
    highlight_edges = highlight_edges or set()
    fig, ax = plt.subplots(figsize=(14, 6.5))
    ax.set_axis_off()
    ax.set_xlim(0, 1)
    ax.set_ylim(0, 1)

    for row in edge_df.itertuples(index=False):
        if row.source not in GRAPH_POSITIONS or row.target not in GRAPH_POSITIONS:
            continue
        start, end = trim_edge_to_box(GRAPH_POSITIONS[row.source], GRAPH_POSITIONS[row.target])
        edge_key = (row.source, row.target)
        edge_type = row.edge_type
        color = "#7c3aed" if edge_key in highlight_edges else "#334155"
        arrowstyle = "-|>" if edge_type == "-->" else "-"
        linewidth = 2.4 if edge_key in highlight_edges else 1.8
        arrow = FancyArrowPatch(
            start,
            end,
            arrowstyle=arrowstyle,
            mutation_scale=17,
            linewidth=linewidth,
            color=color,
            connectionstyle="arc3,rad=0.03",
            zorder=2,
        )
        ax.add_patch(arrow)

    for variable, (x, y) in GRAPH_POSITIONS.items():
        rect = FancyBboxPatch(
            (x - 0.082, y - 0.046),
            0.164,
            0.092,
            boxstyle="round,pad=0.014",
            facecolor=GRAPH_COLORS[variable],
            edgecolor="#1f2937",
            linewidth=1.15,
            zorder=4,
        )
        ax.add_patch(rect)
        ax.text(x, y, DISPLAY_LABELS[variable], ha="center", va="center", fontsize=9.8, fontweight="bold", zorder=5)

    if note:
        ax.text(0.5, 0.07, note, ha="center", va="center", fontsize=10, color="#475569")
    ax.set_title(title, pad=16, fontsize=16, fontweight="bold")
    fig.savefig(path, dpi=160, bbox_inches="tight")
    plt.show()


draw_box_graph(
    true_edge_table,
    "Synthetic Teaching Truth For The Case Study",
    FIGURE_DIR / f"{NOTEBOOK_PREFIX}_true_case_study_graph.png",
    note="This truth graph is available only because the notebook uses simulated data.",
)

The truth graph gives us a way to score the workflow. In real work, the same visual style can be used for a pre-analysis domain graph and for the final candidate graph.

Encode Domain Timing Constraints

The variable dictionary gave each variable a timing tier. The next cell converts that tier order into causal-learn background knowledge for PC: later variables are not allowed to cause earlier variables.

def build_tier_background_knowledge(variable_dictionary):
    nodes = {variable: GraphNode(variable) for variable in variable_dictionary["variable"]}
    knowledge = BackgroundKnowledge()
    for row in variable_dictionary.itertuples(index=False):
        knowledge.add_node_to_tier(nodes[row.variable], int(row.timing_tier))
    return knowledge


background_knowledge = build_tier_background_knowledge(variable_dictionary)
constraint_table = variable_dictionary[["variable", "timing_tier", "role"]].copy()
constraint_table.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_timing_constraints.csv", index=False)
display(constraint_table)

	variable	timing_tier	role
0	baseline_need	0	upstream context
1	catalog_fit	1	upstream context
2	onboarding_friction	2	early barrier
3	discovery_quality	3	candidate mechanism
4	early_engagement	4	intermediate outcome
5	support_contact	5	friction outcome
6	retention_value	6	final outcome

The constraints are modest but important. They do not force any edge to exist; they only rule out time-reversing directions.

Graph Parsing And Evaluation Helpers

This helper block converts outputs from causal-learn into one standard edge table format and computes skeleton and direction metrics against the synthetic truth.

def parse_causallearn_edge(edge):
    text = str(edge).strip()
    edge_tokens = [" --> ", " <-- ", " <-> ", " o-> ", " <-o ", " o-o ", " --- "]
    for token in edge_tokens:
        if token in text:
            left, right = text.split(token)
            if token == " <-- ":
                return {"source": right.strip(), "edge_type": "-->", "target": left.strip()}
            if token == " <-o ":
                return {"source": right.strip(), "edge_type": "o->", "target": left.strip()}
            return {"source": left.strip(), "edge_type": token.strip(), "target": right.strip()}
    raise ValueError(f"Could not parse edge: {text}")


def graph_to_edge_table(graph, label):
    rows = [parse_causallearn_edge(edge) for edge in graph.get_graph_edges()]
    edge_table = pd.DataFrame(rows, columns=["source", "edge_type", "target"])
    edge_table.insert(0, "run", label)
    return edge_table


def lingam_to_edge_table(adjacency_matrix, label, threshold=0.12):
    rows = []
    for target in VARIABLES:
        for source in VARIABLES:
            if source == target:
                continue
            coefficient = float(adjacency_matrix[VAR_INDEX[target], VAR_INDEX[source]])
            if abs(coefficient) >= threshold:
                rows.append(
                    {
                        "run": label,
                        "source": source,
                        "edge_type": "-->",
                        "target": target,
                        "coefficient": coefficient,
                        "abs_coefficient": abs(coefficient),
                    }
                )
    return pd.DataFrame(rows, columns=["run", "source", "edge_type", "target", "coefficient", "abs_coefficient"])


def skeleton_pairs(edge_df):
    if edge_df.empty:
        return set()
    return {tuple(sorted((row.source, row.target))) for row in edge_df.itertuples(index=False)}


def directed_pairs(edge_df):
    if edge_df.empty:
        return set()
    return {(row.source, row.target) for row in edge_df.itertuples(index=False) if row.edge_type == "-->"}


TRUE_DIRECTED = set(TRUE_EDGES)
TRUE_SKELETON = {tuple(sorted(edge)) for edge in TRUE_EDGES}


def summarize_against_truth(edge_df, label, scenario="case_study"):
    learned_skeleton = skeleton_pairs(edge_df)
    learned_directed = directed_pairs(edge_df)
    skeleton_tp = learned_skeleton & TRUE_SKELETON
    skeleton_fp = learned_skeleton - TRUE_SKELETON
    skeleton_fn = TRUE_SKELETON - learned_skeleton
    directed_tp = learned_directed & TRUE_DIRECTED
    directed_fp = learned_directed - TRUE_DIRECTED
    directed_fn = TRUE_DIRECTED - learned_directed
    reversed_true_edges = {(target, source) for source, target in learned_directed} & TRUE_DIRECTED

    skeleton_precision = len(skeleton_tp) / len(learned_skeleton) if learned_skeleton else np.nan
    skeleton_recall = len(skeleton_tp) / len(TRUE_SKELETON)
    skeleton_f1 = 2 * skeleton_precision * skeleton_recall / (skeleton_precision + skeleton_recall) if skeleton_precision + skeleton_recall > 0 else np.nan
    directed_precision = len(directed_tp) / len(learned_directed) if learned_directed else np.nan
    directed_recall = len(directed_tp) / len(TRUE_DIRECTED)
    directed_f1 = 2 * directed_precision * directed_recall / (directed_precision + directed_recall) if directed_precision + directed_recall > 0 else np.nan

    return pd.DataFrame(
        [
            {
                "scenario": scenario,
                "method": label,
                "reported_edges": len(edge_df),
                "skeleton_precision": skeleton_precision,
                "skeleton_recall": skeleton_recall,
                "skeleton_f1": skeleton_f1,
                "directed_precision": directed_precision,
                "directed_recall": directed_recall,
                "directed_f1": directed_f1,
                "extra_adjacencies": len(skeleton_fp),
                "missed_adjacencies": len(skeleton_fn),
                "reversed_true_edges": len(reversed_true_edges),
                "missed_adjacency_list": " | ".join(f"{a}--{b}" for a, b in sorted(skeleton_fn)),
                "extra_adjacency_list": " | ".join(f"{a}--{b}" for a, b in sorted(skeleton_fp)),
            }
        ]
    )

The metrics keep adjacency recovery and arrow recovery separate. That distinction is especially important for PC and GES, which can return partially directed graphs.

Algorithm Runners

The case study compares four views:

• unconstrained PC, to see what the data alone suggest;
• tier-constrained PC, to respect domain timing;
• GES, a score-based candidate graph;
• DirectLiNGAM, a linear non-Gaussian directed graph.

def run_pc_case(data_df, alpha=0.01, label="PC_unconstrained", background_knowledge=None):
    start = time.perf_counter()
    result = pc(
        data_df.to_numpy(),
        alpha=alpha,
        indep_test="fisherz",
        stable=True,
        show_progress=False,
        node_names=VARIABLES,
        background_knowledge=background_knowledge,
    )
    elapsed = time.perf_counter() - start
    return graph_to_edge_table(result.G, label), elapsed


def run_ges_case(data_df, lambda_value=1.0, label="GES_BIC"):
    start = time.perf_counter()
    values = data_df.to_numpy()
    record = ges(
        score_func="local_score_BIC_from_cov",
        cov=np.cov(values.T, ddof=0),
        n=len(data_df),
        node_names=VARIABLES,
        parameters={"lambda_value": lambda_value},
    )
    elapsed = time.perf_counter() - start
    return graph_to_edge_table(record["G"], label), elapsed


def run_direct_lingam_case(data_df, threshold=0.12, label="DirectLiNGAM"):
    start = time.perf_counter()
    model = DirectLiNGAM(random_state=RANDOM_SEED)
    model.fit(data_df.to_numpy())
    elapsed = time.perf_counter() - start
    return lingam_to_edge_table(model.adjacency_matrix_, label=label, threshold=threshold), elapsed, model


def run_fci_case(data_df, alpha=0.01, label="FCI_FisherZ"):
    start = time.perf_counter()
    graph, _ = fci(
        data_df.to_numpy(),
        independence_test_method="fisherz",
        alpha=alpha,
        show_progress=False,
        node_names=VARIABLES,
    )
    elapsed = time.perf_counter() - start
    return graph_to_edge_table(graph, label), elapsed

The runner functions keep tuning choices explicit. This makes later sensitivity checks easier to read.

Run Candidate Discovery Methods

We now estimate candidate graphs. The unconstrained PC graph is useful as a diagnostic, but the constrained PC graph better respects the known timing order.

candidate_results = []
candidate_edges = []

pc_unconstrained_edges, pc_unconstrained_elapsed = run_pc_case(case_df, alpha=0.01, label="PC_unconstrained")
candidate_results.append(summarize_against_truth(pc_unconstrained_edges, "PC_unconstrained").assign(elapsed_seconds=pc_unconstrained_elapsed))
candidate_edges.append(pc_unconstrained_edges.assign(elapsed_seconds=pc_unconstrained_elapsed))

pc_tier_edges, pc_tier_elapsed = run_pc_case(case_df, alpha=0.01, label="PC_tier_constrained", background_knowledge=background_knowledge)
candidate_results.append(summarize_against_truth(pc_tier_edges, "PC_tier_constrained").assign(elapsed_seconds=pc_tier_elapsed))
candidate_edges.append(pc_tier_edges.assign(elapsed_seconds=pc_tier_elapsed))

ges_edges, ges_elapsed = run_ges_case(case_df, lambda_value=1.0, label="GES_BIC")
candidate_results.append(summarize_against_truth(ges_edges, "GES_BIC").assign(elapsed_seconds=ges_elapsed))
candidate_edges.append(ges_edges.assign(elapsed_seconds=ges_elapsed))

lingam_edges, lingam_elapsed, lingam_model = run_direct_lingam_case(case_df, threshold=0.12, label="DirectLiNGAM")
candidate_results.append(summarize_against_truth(lingam_edges, "DirectLiNGAM").assign(elapsed_seconds=lingam_elapsed))
candidate_edges.append(lingam_edges.assign(elapsed_seconds=lingam_elapsed))

candidate_metrics = pd.concat(candidate_results, ignore_index=True)
candidate_edge_table = pd.concat(candidate_edges, ignore_index=True)
candidate_metrics.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_candidate_method_metrics.csv", index=False)
candidate_edge_table.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_candidate_method_edges.csv", index=False)

display(candidate_metrics.round(4))
display(candidate_edge_table)

	scenario	method	reported_edges	skeleton_precision	skeleton_recall	skeleton_f1	directed_precision	directed_recall	directed_f1	extra_adjacencies	missed_adjacencies	reversed_true_edges	missed_adjacency_list	extra_adjacency_list	elapsed_seconds
0	case_study	PC_unconstrained	7	0.8571	0.75	0.8	0.7143	0.625	0.6667	1	2	1	discovery_quality--retention_value | early_eng...	onboarding_friction--retention_value	0.0085
1	case_study	PC_tier_constrained	7	0.8571	0.75	0.8	0.8571	0.750	0.8000	1	2	0	discovery_quality--retention_value | early_eng...	onboarding_friction--retention_value	0.0086
2	case_study	GES_BIC	8	1.0000	1.00	1.0	1.0000	0.875	0.9333	0	0	0			0.0188
3	case_study	DirectLiNGAM	8	1.0000	1.00	1.0	1.0000	1.000	1.0000	0	0	0			0.0309

	run	source	edge_type	target	elapsed_seconds	coefficient	abs_coefficient
0	PC_unconstrained	baseline_need	-->	discovery_quality	0.008498	NaN	NaN
1	PC_unconstrained	catalog_fit	-->	discovery_quality	0.008498	NaN	NaN
2	PC_unconstrained	support_contact	-->	onboarding_friction	0.008498	NaN	NaN
3	PC_unconstrained	retention_value	-->	onboarding_friction	0.008498	NaN	NaN
4	PC_unconstrained	discovery_quality	-->	early_engagement	0.008498	NaN	NaN
5	PC_unconstrained	early_engagement	-->	retention_value	0.008498	NaN	NaN
6	PC_unconstrained	support_contact	-->	retention_value	0.008498	NaN	NaN
7	PC_tier_constrained	baseline_need	-->	discovery_quality	0.008631	NaN	NaN
8	PC_tier_constrained	catalog_fit	-->	discovery_quality	0.008631	NaN	NaN
9	PC_tier_constrained	onboarding_friction	-->	support_contact	0.008631	NaN	NaN
10	PC_tier_constrained	onboarding_friction	-->	retention_value	0.008631	NaN	NaN
11	PC_tier_constrained	discovery_quality	-->	early_engagement	0.008631	NaN	NaN
12	PC_tier_constrained	early_engagement	-->	retention_value	0.008631	NaN	NaN
13	PC_tier_constrained	support_contact	-->	retention_value	0.008631	NaN	NaN
14	GES_BIC	baseline_need	-->	discovery_quality	0.018829	NaN	NaN
15	GES_BIC	catalog_fit	-->	discovery_quality	0.018829	NaN	NaN
16	GES_BIC	onboarding_friction	-->	early_engagement	0.018829	NaN	NaN
17	GES_BIC	onboarding_friction	---	support_contact	0.018829	NaN	NaN
18	GES_BIC	discovery_quality	-->	early_engagement	0.018829	NaN	NaN
19	GES_BIC	discovery_quality	-->	retention_value	0.018829	NaN	NaN
20	GES_BIC	early_engagement	-->	retention_value	0.018829	NaN	NaN
21	GES_BIC	support_contact	-->	retention_value	0.018829	NaN	NaN
22	DirectLiNGAM	baseline_need	-->	discovery_quality	0.030896	0.547200	0.547200
23	DirectLiNGAM	catalog_fit	-->	discovery_quality	0.030896	0.582005	0.582005
24	DirectLiNGAM	onboarding_friction	-->	early_engagement	0.030896	-0.418158	0.418158
25	DirectLiNGAM	discovery_quality	-->	early_engagement	0.030896	0.732900	0.732900
26	DirectLiNGAM	onboarding_friction	-->	support_contact	0.030896	0.662272	0.662272
27	DirectLiNGAM	discovery_quality	-->	retention_value	0.030896	0.238489	0.238489
28	DirectLiNGAM	early_engagement	-->	retention_value	0.030896	0.549588	0.549588
29	DirectLiNGAM	support_contact	-->	retention_value	0.030896	-0.359662	0.359662

The candidate comparison shows the value of method triangulation. The constrained PC graph respects timing, GES provides a score-based view, and DirectLiNGAM gives a directed weighted view under non-Gaussian assumptions.

Plot Candidate Method Metrics

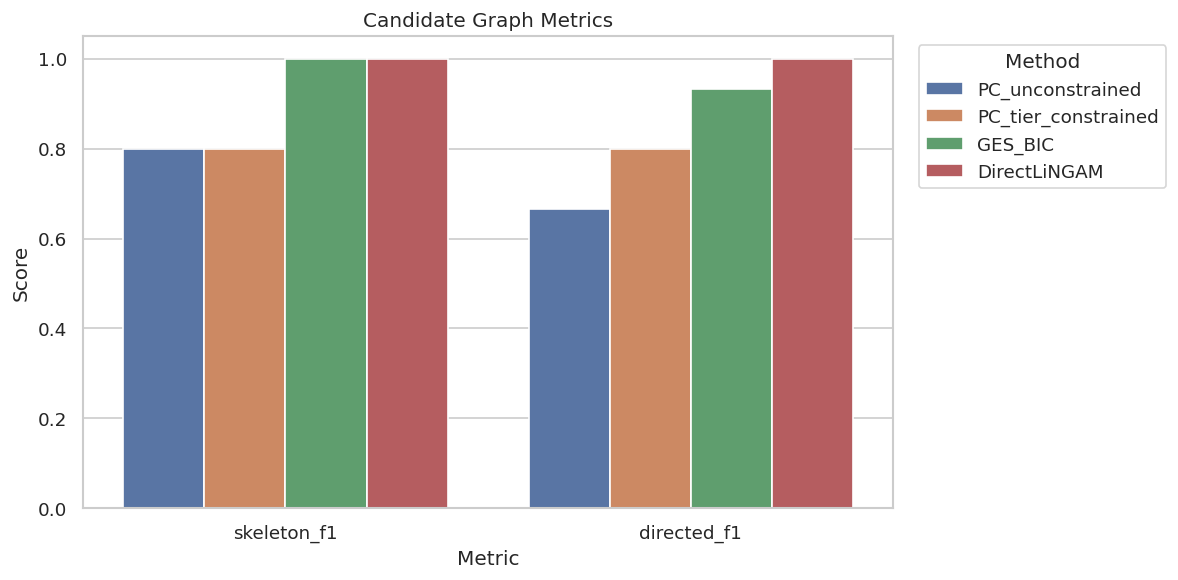

This plot compares skeleton and directed F1 for the candidate methods. The synthetic truth lets us quantify what would normally be judged through stability and domain review.

metric_plot = candidate_metrics.melt(
    id_vars="method",
    value_vars=["skeleton_f1", "directed_f1"],
    var_name="metric",
    value_name="score",
)

fig, ax = plt.subplots(figsize=(10, 5))
sns.barplot(data=metric_plot, x="metric", y="score", hue="method", ax=ax)
ax.set_title("Candidate Graph Metrics")
ax.set_xlabel("Metric")
ax.set_ylabel("Score")
ax.set_ylim(0, 1.05)
ax.legend(title="Method", bbox_to_anchor=(1.02, 1), loc="upper left")
plt.tight_layout()
fig.savefig(FIGURE_DIR / f"{NOTEBOOK_PREFIX}_candidate_method_metrics.png", dpi=160, bbox_inches="tight")
plt.show()

The plot highlights a common applied pattern: a method can recover a strong skeleton while leaving some arrows unresolved, and a functional method can recover more directions when its assumptions are plausible.

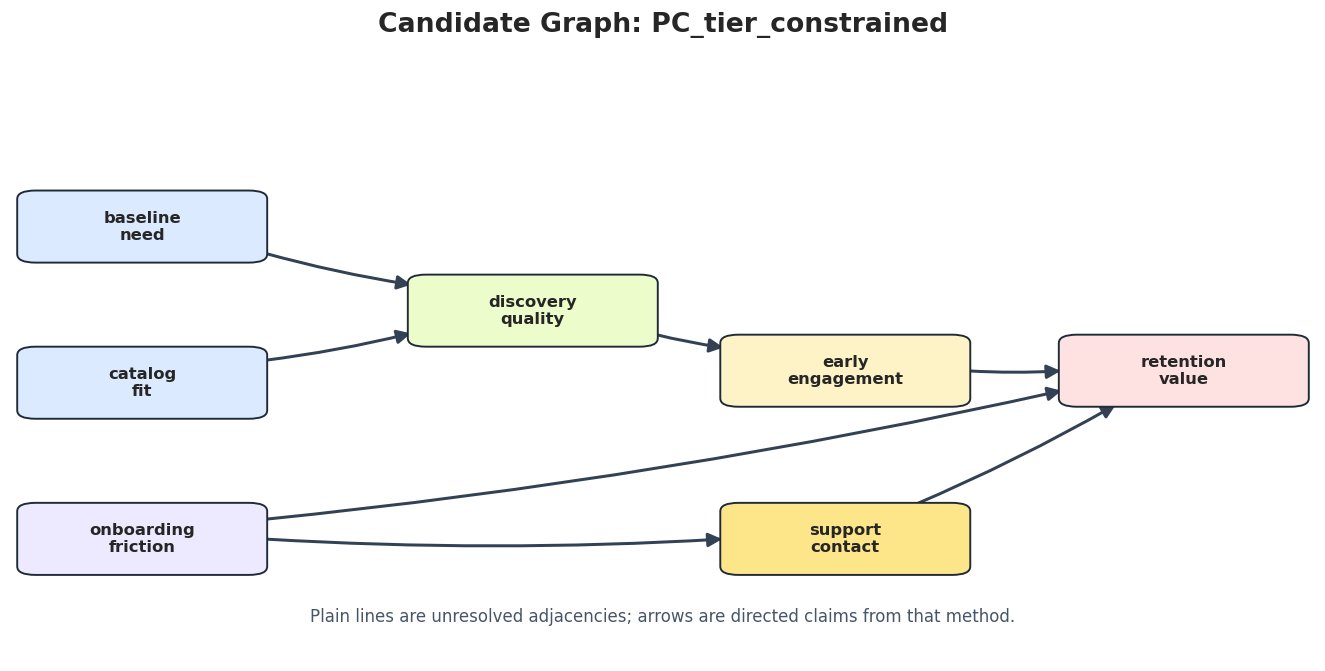

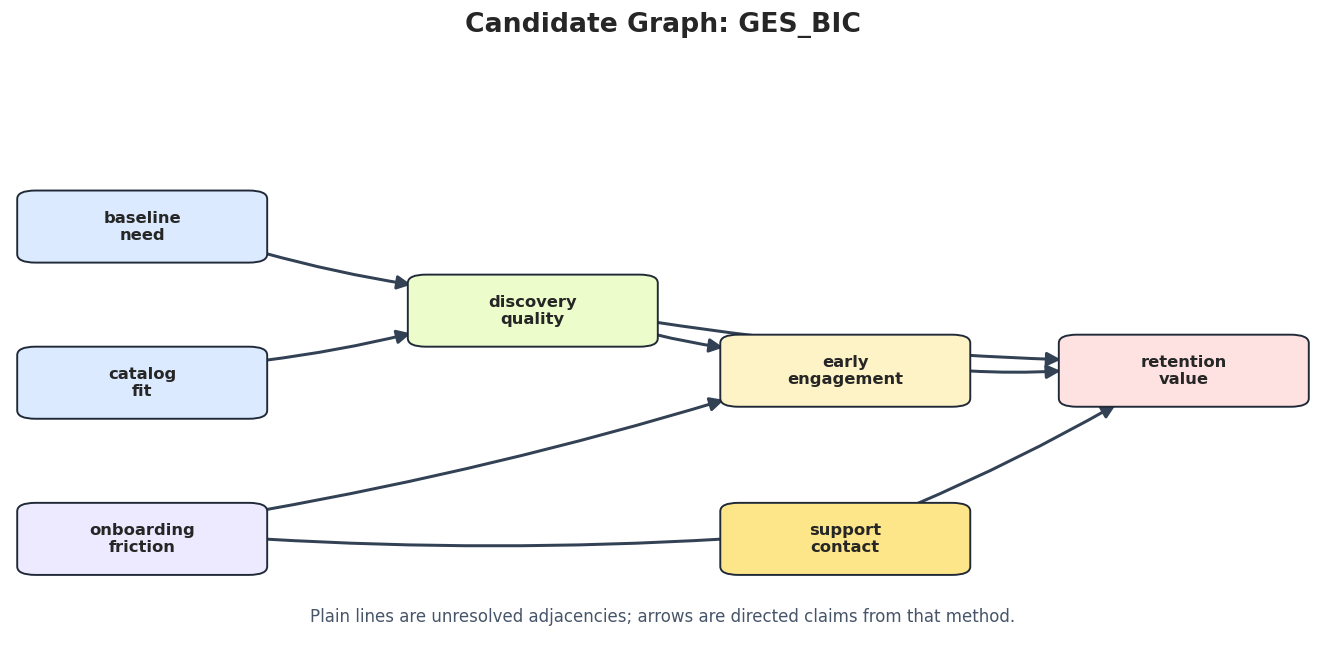

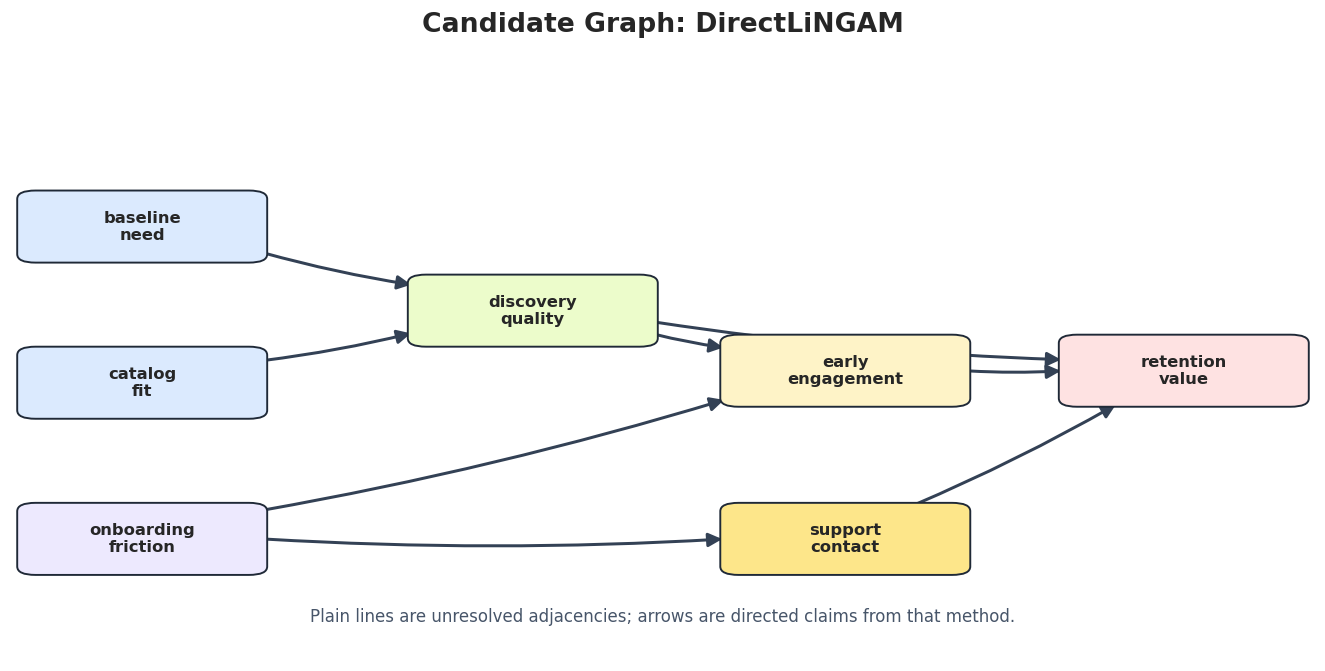

Draw Candidate Graphs

A table is precise, but graph drawings are better for stakeholder review. The next cell saves the constrained PC, GES, and DirectLiNGAM candidate graphs.

for method_name in ["PC_tier_constrained", "GES_BIC", "DirectLiNGAM"]:
    method_edges = candidate_edge_table[candidate_edge_table["run"] == method_name].copy()
    draw_box_graph(
        method_edges,
        f"Candidate Graph: {method_name}",
        FIGURE_DIR / f"{NOTEBOOK_PREFIX}_{method_name.lower()}_candidate_graph.png",
        note="Plain lines are unresolved adjacencies; arrows are directed claims from that method.",
    )

The candidate graphs make it easier to inspect where algorithms agree and where they disagree. This is the visual input to the consensus step.

Edge Consensus Across Methods

The next table counts how many candidate methods support each directed edge and each adjacency. We use only the three serious candidates for final review: tier-constrained PC, GES, and DirectLiNGAM.

review_methods = ["PC_tier_constrained", "GES_BIC", "DirectLiNGAM"]
review_edges = candidate_edge_table[candidate_edge_table["run"].isin(review_methods)].copy()

consensus_rows = []
for source in VARIABLES:
    for target in VARIABLES:
        if source == target:
            continue
        skeleton_key = tuple(sorted((source, target)))
        directed_support_methods = sorted(
            review_edges[
                (review_edges["source"] == source)
                & (review_edges["target"] == target)
                & (review_edges["edge_type"] == "-->")
            ]["run"].unique()
        )
        adjacency_support_methods = sorted(
            review_edges[
                review_edges.apply(lambda row: tuple(sorted((row["source"], row["target"]))) == skeleton_key, axis=1)
            ]["run"].unique()
        )
        if directed_support_methods or adjacency_support_methods:
            consensus_rows.append(
                {
                    "source": source,
                    "target": target,
                    "directed_support_count": len(directed_support_methods),
                    "adjacency_support_count": len(adjacency_support_methods),
                    "directed_support_methods": ", ".join(directed_support_methods),
                    "adjacency_support_methods": ", ".join(adjacency_support_methods),
                    "is_true_edge_in_synthetic_data": (source, target) in TRUE_DIRECTED,
                }
            )

edge_consensus = pd.DataFrame(consensus_rows).sort_values(
    ["directed_support_count", "adjacency_support_count", "source", "target"],
    ascending=[False, False, True, True],
)
edge_consensus.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_edge_consensus.csv", index=False)
display(edge_consensus)

	source	target	directed_support_count	adjacency_support_count	directed_support_methods	adjacency_support_methods	is_true_edge_in_synthetic_data
0	baseline_need	discovery_quality	3	3	DirectLiNGAM, GES_BIC, PC_tier_constrained	DirectLiNGAM, GES_BIC, PC_tier_constrained	True
1	catalog_fit	discovery_quality	3	3	DirectLiNGAM, GES_BIC, PC_tier_constrained	DirectLiNGAM, GES_BIC, PC_tier_constrained	True
7	discovery_quality	early_engagement	3	3	DirectLiNGAM, GES_BIC, PC_tier_constrained	DirectLiNGAM, GES_BIC, PC_tier_constrained	True
11	early_engagement	retention_value	3	3	DirectLiNGAM, GES_BIC, PC_tier_constrained	DirectLiNGAM, GES_BIC, PC_tier_constrained	True
13	support_contact	retention_value	3	3	DirectLiNGAM, GES_BIC, PC_tier_constrained	DirectLiNGAM, GES_BIC, PC_tier_constrained	True
3	onboarding_friction	support_contact	2	3	DirectLiNGAM, PC_tier_constrained	DirectLiNGAM, GES_BIC, PC_tier_constrained	True
8	discovery_quality	retention_value	2	2	DirectLiNGAM, GES_BIC	DirectLiNGAM, GES_BIC	True
2	onboarding_friction	early_engagement	2	2	DirectLiNGAM, GES_BIC	DirectLiNGAM, GES_BIC	True
4	onboarding_friction	retention_value	1	1	PC_tier_constrained	PC_tier_constrained	False
5	discovery_quality	baseline_need	0	3		DirectLiNGAM, GES_BIC, PC_tier_constrained	False
6	discovery_quality	catalog_fit	0	3		DirectLiNGAM, GES_BIC, PC_tier_constrained	False
10	early_engagement	discovery_quality	0	3		DirectLiNGAM, GES_BIC, PC_tier_constrained	False
16	retention_value	early_engagement	0	3		DirectLiNGAM, GES_BIC, PC_tier_constrained	False
17	retention_value	support_contact	0	3		DirectLiNGAM, GES_BIC, PC_tier_constrained	False
12	support_contact	onboarding_friction	0	3		DirectLiNGAM, GES_BIC, PC_tier_constrained	False
9	early_engagement	onboarding_friction	0	2		DirectLiNGAM, GES_BIC	False
15	retention_value	discovery_quality	0	2		DirectLiNGAM, GES_BIC	False
14	retention_value	onboarding_friction	0	1		PC_tier_constrained	False

The consensus table gives a practical review queue. Edges supported by multiple methods and consistent with timing constraints are better candidates for the final graph.

Tuning Sensitivity

Before choosing a final graph, we scan key tuning knobs: PC alpha, GES BIC penalty, and DirectLiNGAM coefficient threshold.

tuning_rows = []

for alpha in [0.001, 0.005, 0.01, 0.05, 0.10]:
    edges, elapsed = run_pc_case(case_df, alpha=alpha, label="PC_tier_constrained", background_knowledge=background_knowledge)
    metrics = summarize_against_truth(edges, "PC_tier_constrained", scenario=f"pc_alpha_{alpha}")
    metrics["tuning_family"] = "PC alpha"
    metrics["tuning_value"] = alpha
    metrics["elapsed_seconds"] = elapsed
    tuning_rows.append(metrics)

for lambda_value in [0.50, 0.75, 1.00, 1.50, 2.00]:
    edges, elapsed = run_ges_case(case_df, lambda_value=lambda_value, label="GES_BIC")
    metrics = summarize_against_truth(edges, "GES_BIC", scenario=f"ges_lambda_{lambda_value}")
    metrics["tuning_family"] = "GES lambda"
    metrics["tuning_value"] = lambda_value
    metrics["elapsed_seconds"] = elapsed
    tuning_rows.append(metrics)

for threshold in [0.05, 0.08, 0.12, 0.16, 0.20]:
    edges = lingam_to_edge_table(lingam_model.adjacency_matrix_, label="DirectLiNGAM", threshold=threshold)
    metrics = summarize_against_truth(edges, "DirectLiNGAM", scenario=f"lingam_threshold_{threshold}")
    metrics["tuning_family"] = "LiNGAM threshold"
    metrics["tuning_value"] = threshold
    metrics["elapsed_seconds"] = 0.0
    tuning_rows.append(metrics)

tuning_sensitivity = pd.concat(tuning_rows, ignore_index=True)
tuning_sensitivity.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_tuning_sensitivity.csv", index=False)
display(tuning_sensitivity[["method", "tuning_family", "tuning_value", "reported_edges", "skeleton_f1", "directed_f1", "extra_adjacencies", "missed_adjacencies"]].round(4))

	method	tuning_family	tuning_value	reported_edges	skeleton_f1	directed_f1	extra_adjacencies	missed_adjacencies
0	PC_tier_constrained	PC alpha	0.001	7	0.8000	0.8000	1	2
1	PC_tier_constrained	PC alpha	0.005	7	0.8000	0.8000	1	2
2	PC_tier_constrained	PC alpha	0.010	7	0.8000	0.8000	1	2
3	PC_tier_constrained	PC alpha	0.050	8	1.0000	1.0000	0	0
4	PC_tier_constrained	PC alpha	0.100	8	1.0000	1.0000	0	0
5	GES_BIC	GES lambda	0.500	9	0.9412	0.9333	1	0
6	GES_BIC	GES lambda	0.750	8	1.0000	0.9333	0	0
7	GES_BIC	GES lambda	1.000	8	1.0000	0.9333	0	0
8	GES_BIC	GES lambda	1.500	8	1.0000	0.9333	0	0
9	GES_BIC	GES lambda	2.000	8	1.0000	0.9333	0	0
10	DirectLiNGAM	LiNGAM threshold	0.050	8	1.0000	1.0000	0	0
11	DirectLiNGAM	LiNGAM threshold	0.080	8	1.0000	1.0000	0	0
12	DirectLiNGAM	LiNGAM threshold	0.120	8	1.0000	1.0000	0	0
13	DirectLiNGAM	LiNGAM threshold	0.160	8	1.0000	1.0000	0	0
14	DirectLiNGAM	LiNGAM threshold	0.200	8	1.0000	1.0000	0	0

The tuning scan checks whether the candidate graph depends on a single arbitrary setting. Stable regions are more useful than isolated peaks.

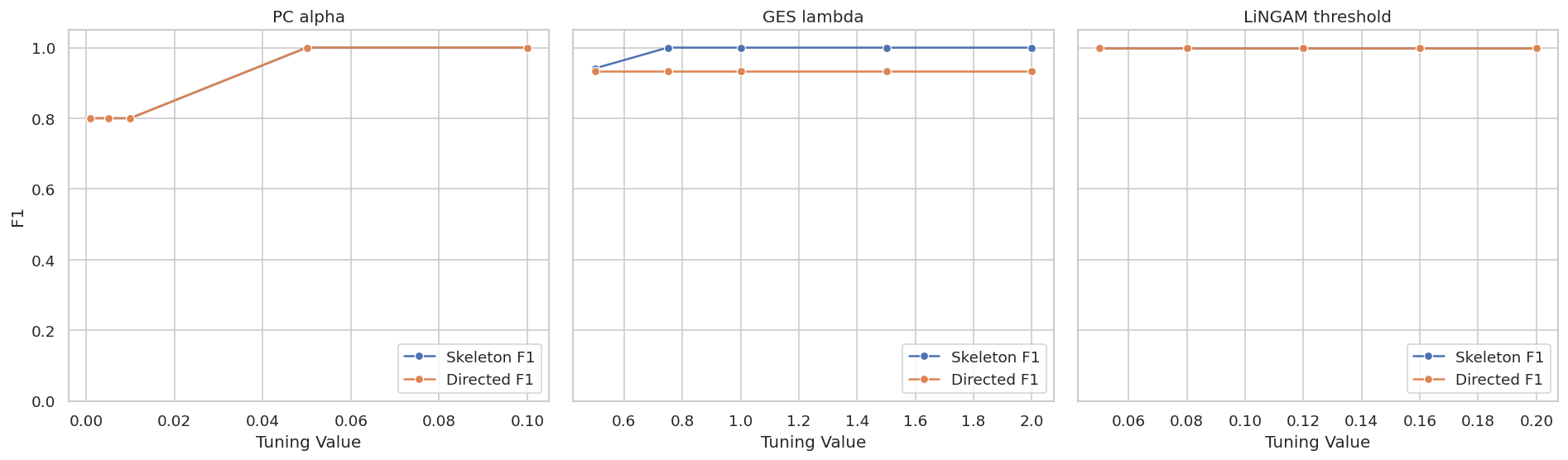

Plot Tuning Sensitivity

The figure uses separate panels because each method has a different tuning parameter.

fig, axes = plt.subplots(1, 3, figsize=(16, 4.8), sharey=True)
for ax, family in zip(axes, ["PC alpha", "GES lambda", "LiNGAM threshold"]):
    subset = tuning_sensitivity[tuning_sensitivity["tuning_family"] == family]
    sns.lineplot(data=subset, x="tuning_value", y="skeleton_f1", marker="o", label="Skeleton F1", ax=ax)
    sns.lineplot(data=subset, x="tuning_value", y="directed_f1", marker="o", label="Directed F1", ax=ax)
    ax.set_title(family)
    ax.set_xlabel("Tuning Value")
    ax.set_ylabel("F1")
    ax.set_ylim(0, 1.05)
    ax.legend(loc="lower right")
plt.tight_layout()
fig.savefig(FIGURE_DIR / f"{NOTEBOOK_PREFIX}_tuning_sensitivity.png", dpi=160, bbox_inches="tight")
plt.show()

The plot helps decide whether the final graph is a robust finding or a fragile artifact of one tuning choice.

Bootstrap Edge Stability

A final graph should not depend on a single sample draw. We bootstrap rows, rerun the three candidate methods, and count how often each directed edge appears.

bootstrap_rows = []
bootstrap_edge_rows = []
bootstrap_rng = np.random.default_rng(RANDOM_SEED)

for bootstrap_id in range(20):
    sample_indices = bootstrap_rng.choice(case_df.index.to_numpy(), size=len(case_df), replace=True)
    sample_df = case_df.loc[sample_indices].reset_index(drop=True)

    method_outputs = []
    edges, elapsed = run_pc_case(sample_df, alpha=0.01, label="PC_tier_constrained", background_knowledge=background_knowledge)
    method_outputs.append(("PC_tier_constrained", edges, elapsed))

    edges, elapsed = run_ges_case(sample_df, lambda_value=1.0, label="GES_BIC")
    method_outputs.append(("GES_BIC", edges, elapsed))

    edges, elapsed, _ = run_direct_lingam_case(sample_df, threshold=0.12, label="DirectLiNGAM")
    method_outputs.append(("DirectLiNGAM", edges, elapsed))

    for method_name, edges, elapsed in method_outputs:
        metrics = summarize_against_truth(edges, method_name, scenario=f"bootstrap_{bootstrap_id}")
        metrics["bootstrap_id"] = bootstrap_id
        metrics["elapsed_seconds"] = elapsed
        bootstrap_rows.append(metrics)
        bootstrap_edge_rows.append(edges.assign(method=method_name, bootstrap_id=bootstrap_id, elapsed_seconds=elapsed))

bootstrap_metrics = pd.concat(bootstrap_rows, ignore_index=True)
bootstrap_edges = pd.concat(bootstrap_edge_rows, ignore_index=True)
bootstrap_metrics.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_bootstrap_metrics.csv", index=False)
bootstrap_edges.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_bootstrap_edges.csv", index=False)

display(bootstrap_metrics.groupby("method", as_index=False).agg(
    runs=("bootstrap_id", "count"),
    mean_skeleton_f1=("skeleton_f1", "mean"),
    mean_directed_f1=("directed_f1", "mean"),
    min_directed_f1=("directed_f1", "min"),
).round(4))

	method	runs	mean_skeleton_f1	mean_directed_f1	min_directed_f1
0	DirectLiNGAM	20	0.9971	0.9971	0.9412
1	GES_BIC	20	0.9598	0.9067	0.5882
2	PC_tier_constrained	20	0.8824	0.8824	0.7500

The bootstrap summary gives a stability view by method. Next we turn the bootstrap edges into edge-level inclusion rates.

Edge-Level Stability Table

This table reports how often each directed edge appears across all method-bootstrap runs. It also records method-specific support so final graph selection can distinguish broad support from one-method support.

directed_bootstrap_edges = bootstrap_edges[bootstrap_edges["edge_type"] == "-->"].copy()
edge_stability_rows = []
for source in VARIABLES:
    for target in VARIABLES:
        if source == target:
            continue
        edge_subset = directed_bootstrap_edges[(directed_bootstrap_edges["source"] == source) & (directed_bootstrap_edges["target"] == target)]
        if edge_subset.empty:
            continue
        method_rates = edge_subset.groupby("method")["bootstrap_id"].nunique() / 20
        edge_stability_rows.append(
            {
                "source": source,
                "target": target,
                "overall_inclusion_rate": edge_subset[["method", "bootstrap_id"]].drop_duplicates().shape[0] / (20 * 3),
                "pc_rate": method_rates.get("PC_tier_constrained", 0.0),
                "ges_rate": method_rates.get("GES_BIC", 0.0),
                "lingam_rate": method_rates.get("DirectLiNGAM", 0.0),
                "methods_with_any_support": int((method_rates > 0).sum()),
                "is_true_edge_in_synthetic_data": (source, target) in TRUE_DIRECTED,
            }
        )

edge_stability = pd.DataFrame(edge_stability_rows).sort_values(
    ["overall_inclusion_rate", "methods_with_any_support", "source", "target"],
    ascending=[False, False, True, True],
)
edge_stability.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_edge_stability.csv", index=False)
display(edge_stability.round(3))

	source	target	overall_inclusion_rate	pc_rate	ges_rate	lingam_rate	methods_with_any_support	is_true_edge_in_synthetic_data
11	discovery_quality	early_engagement	1.000	1.00	1.00	1.00	3	True
14	early_engagement	retention_value	1.000	1.00	1.00	1.00	3	True
17	support_contact	retention_value	1.000	1.00	1.00	1.00	3	True
0	baseline_need	discovery_quality	0.983	1.00	0.95	1.00	3	True
4	catalog_fit	discovery_quality	0.983	1.00	0.95	1.00	3	True
6	onboarding_friction	early_engagement	0.867	0.60	1.00	1.00	3	True
12	discovery_quality	retention_value	0.750	0.25	1.00	1.00	3	True
7	onboarding_friction	support_contact	0.750	1.00	0.25	1.00	3	True
8	onboarding_friction	retention_value	0.200	0.55	0.05	0.00	2	False
13	early_engagement	support_contact	0.100	0.10	0.20	0.00	2	False
15	support_contact	catalog_fit	0.033	0.00	0.05	0.05	2	False
1	baseline_need	early_engagement	0.017	0.00	0.05	0.00	1	False
2	baseline_need	support_contact	0.017	0.00	0.05	0.00	1	False
3	catalog_fit	baseline_need	0.017	0.00	0.05	0.00	1	False
5	catalog_fit	support_contact	0.017	0.00	0.05	0.00	1	False
9	discovery_quality	baseline_need	0.017	0.00	0.05	0.00	1	False
10	discovery_quality	catalog_fit	0.017	0.00	0.05	0.00	1	False
16	support_contact	early_engagement	0.017	0.00	0.05	0.00	1	False

The stability table is the main evidence table for final graph selection. Edges with high inclusion across multiple method families are easier to defend.

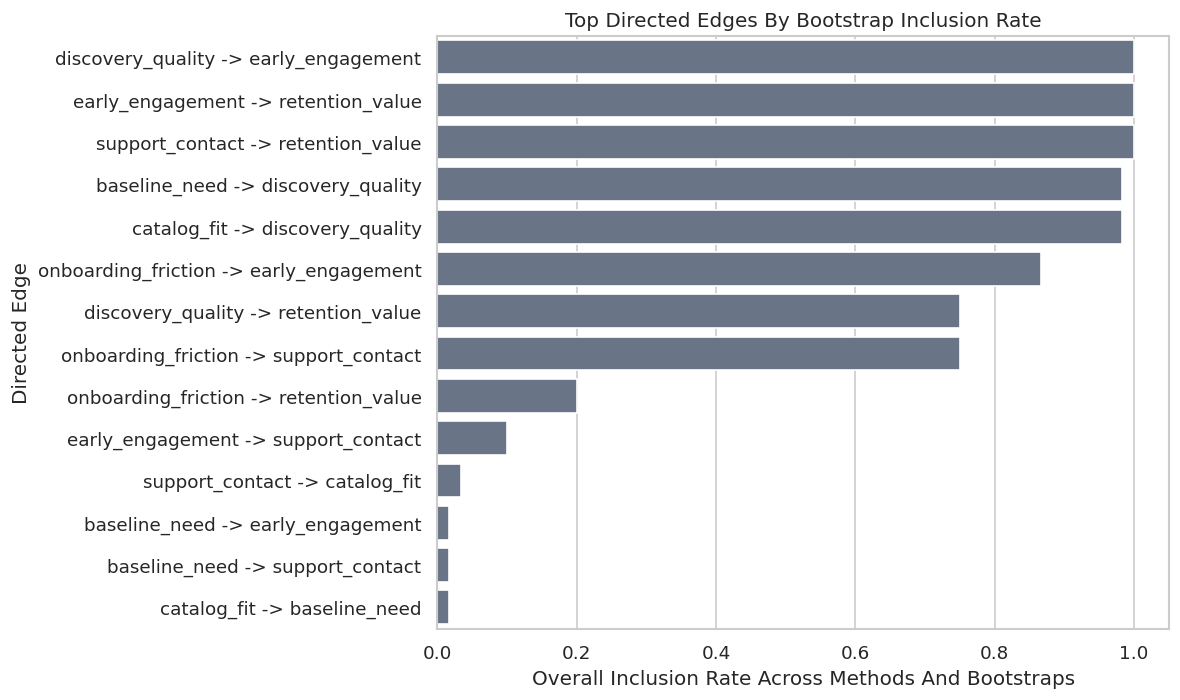

Plot Edge Stability

The plot shows the strongest directed edges by overall inclusion rate.

stability_plot = edge_stability.head(14).copy()
stability_plot["edge"] = stability_plot["source"] + " -> " + stability_plot["target"]

fig, ax = plt.subplots(figsize=(10, 6))
sns.barplot(data=stability_plot, y="edge", x="overall_inclusion_rate", color="#64748b", ax=ax)
ax.set_title("Top Directed Edges By Bootstrap Inclusion Rate")
ax.set_xlabel("Overall Inclusion Rate Across Methods And Bootstraps")
ax.set_ylabel("Directed Edge")
ax.set_xlim(0, 1.05)
plt.tight_layout()
fig.savefig(FIGURE_DIR / f"{NOTEBOOK_PREFIX}_edge_stability.png", dpi=160, bbox_inches="tight")
plt.show()

The strongest edges form a sensible funnel from upstream context through discovery, engagement, support, and retention.

Hidden-Confounding Screen With FCI

FCI is useful when hidden common causes may exist. Here we run it as a diagnostic screen on the baseline observed data. We do not force FCI into the same DAG metric table because it returns a different graph type.

fci_edges, fci_elapsed = run_fci_case(case_df, alpha=0.01, label="FCI_FisherZ")
fci_edges["elapsed_seconds"] = fci_elapsed
fci_edges.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_fci_edges.csv", index=False)
display(fci_edges)
print(f"FCI elapsed seconds: {fci_elapsed:.4f}")

retention_value --> onboarding_friction
discovery_quality --> early_engagement
early_engagement --> retention_value

	run	source	edge_type	target	elapsed_seconds
0	FCI_FisherZ	baseline_need	o->	discovery_quality	0.014755
1	FCI_FisherZ	catalog_fit	o->	discovery_quality	0.014755
2	FCI_FisherZ	onboarding_friction	<->	support_contact	0.014755
3	FCI_FisherZ	retention_value	-->	onboarding_friction	0.014755
4	FCI_FisherZ	discovery_quality	-->	early_engagement	0.014755
5	FCI_FisherZ	early_engagement	-->	retention_value	0.014755
6	FCI_FisherZ	support_contact	<->	retention_value	0.014755

FCI elapsed seconds: 0.0148

The FCI output should be read as a PAG-style diagnostic, not as an ordinary DAG. If it shows many ambiguous or bidirected endpoint marks, that is a warning to be cautious about observed-DAG claims.

Hidden-Context Stress Check

To show why the FCI diagnostic matters, we simulate a variant with an unobserved context variable that affects both baseline need and retention value. We then compare the candidate methods on this harder dataset.

hidden_df = simulate_case_study_data(n_samples=900, seed=RANDOM_SEED, hidden_strength=0.85)
hidden_df.to_csv(DATASET_DIR / f"{NOTEBOOK_PREFIX}_hidden_context_stress_data.csv", index=False)

hidden_results = []
hidden_edge_tables = []
for method_name, runner in [
    ("PC_tier_constrained", lambda data: run_pc_case(data, alpha=0.01, label="PC_tier_constrained", background_knowledge=background_knowledge)[:2]),
    ("GES_BIC", lambda data: run_ges_case(data, lambda_value=1.0, label="GES_BIC")),
]:
    edges, elapsed = runner(hidden_df)
    hidden_results.append(summarize_against_truth(edges, method_name, scenario="hidden_context_stress").assign(elapsed_seconds=elapsed))
    hidden_edge_tables.append(edges.assign(method=method_name, elapsed_seconds=elapsed))

lingam_hidden_edges, lingam_hidden_elapsed, _ = run_direct_lingam_case(hidden_df, threshold=0.12, label="DirectLiNGAM")
hidden_results.append(summarize_against_truth(lingam_hidden_edges, "DirectLiNGAM", scenario="hidden_context_stress").assign(elapsed_seconds=lingam_hidden_elapsed))
hidden_edge_tables.append(lingam_hidden_edges.assign(method="DirectLiNGAM", elapsed_seconds=lingam_hidden_elapsed))

hidden_stress_metrics = pd.concat(hidden_results, ignore_index=True)
hidden_stress_edges = pd.concat(hidden_edge_tables, ignore_index=True)
hidden_stress_metrics.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_hidden_stress_metrics.csv", index=False)
hidden_stress_edges.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_hidden_stress_edges.csv", index=False)

display(hidden_stress_metrics.round(4))

	scenario	method	reported_edges	skeleton_precision	skeleton_recall	skeleton_f1	directed_precision	directed_recall	directed_f1	extra_adjacencies	missed_adjacencies	reversed_true_edges	missed_adjacency_list	extra_adjacency_list	elapsed_seconds
0	hidden_context_stress	PC_tier_constrained	8	0.8750	0.875	0.8750	0.8750	0.875	0.8750	1	1	0	discovery_quality--retention_value	baseline_need--retention_value	0.0100
1	hidden_context_stress	GES_BIC	9	0.8889	1.000	0.9412	0.8750	0.875	0.8750	1	0	0		baseline_need--retention_value	0.0176
2	hidden_context_stress	DirectLiNGAM	9	0.8889	1.000	0.9412	0.8889	1.000	0.9412	1	0	0		baseline_need--retention_value	0.0286

The hidden-context stress check shows how quickly observed-DAG recovery can degrade when causal sufficiency is violated. In real work, this would motivate sensitivity analysis or designs that address omitted causes.

Choose A Final Candidate Graph

We now assemble a final candidate graph using three rules:

• the edge respects timing constraints;
• the edge appears in the DirectLiNGAM graph or has support from at least two candidate methods;
• the edge has nontrivial bootstrap inclusion support.

These rules are intentionally transparent rather than clever.

final_candidate_edges = edge_stability[
    (
        (edge_stability["lingam_rate"] >= 0.70)
        | ((edge_stability["methods_with_any_support"] >= 2) & (edge_stability["overall_inclusion_rate"] >= 0.30))
    )
].copy()

final_candidate_edges["run"] = "final_candidate"
final_candidate_edges["edge_type"] = "-->"
final_edge_table = final_candidate_edges[["run", "source", "edge_type", "target", "overall_inclusion_rate", "pc_rate", "ges_rate", "lingam_rate", "methods_with_any_support", "is_true_edge_in_synthetic_data"]].copy()
final_edge_table = final_edge_table.sort_values(["source", "target"]).reset_index(drop=True)
final_edge_table.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_final_candidate_edges.csv", index=False)

display(final_edge_table.round(3))

	run	source	edge_type	target	overall_inclusion_rate	pc_rate	ges_rate	lingam_rate	methods_with_any_support	is_true_edge_in_synthetic_data
0	final_candidate	baseline_need	-->	discovery_quality	0.983	1.00	0.95	1.0	3	True
1	final_candidate	catalog_fit	-->	discovery_quality	0.983	1.00	0.95	1.0	3	True
2	final_candidate	discovery_quality	-->	early_engagement	1.000	1.00	1.00	1.0	3	True
3	final_candidate	discovery_quality	-->	retention_value	0.750	0.25	1.00	1.0	3	True
4	final_candidate	early_engagement	-->	retention_value	1.000	1.00	1.00	1.0	3	True
5	final_candidate	onboarding_friction	-->	early_engagement	0.867	0.60	1.00	1.0	3	True
6	final_candidate	onboarding_friction	-->	support_contact	0.750	1.00	0.25	1.0	3	True
7	final_candidate	support_contact	-->	retention_value	1.000	1.00	1.00	1.0	3	True

The final edge table is not just a graph; it carries the evidence used to include each edge. That makes the graph easier to review and challenge.

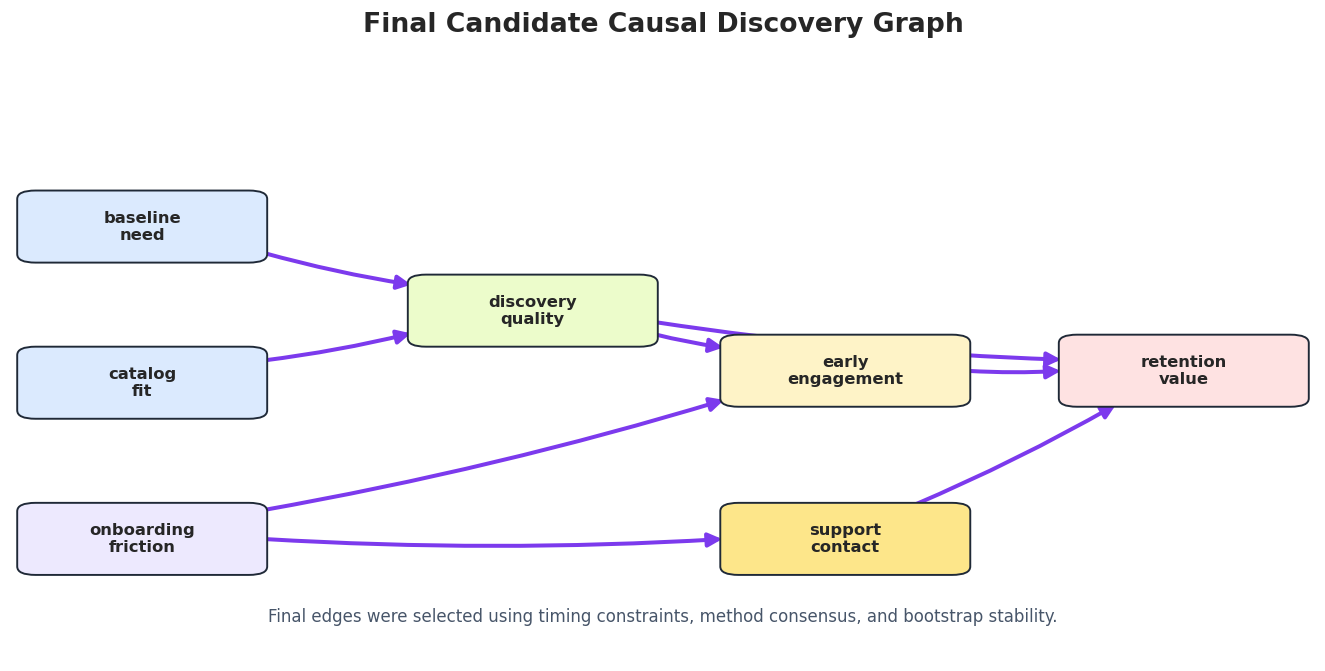

Draw The Final Candidate Graph

The final graph highlights edges selected by the stability and consensus rules.

final_draw_edges = final_edge_table[["run", "source", "edge_type", "target"]].copy()
highlight_edges = set(zip(final_draw_edges["source"], final_draw_edges["target"]))

draw_box_graph(
    final_draw_edges,
    "Final Candidate Causal Discovery Graph",
    FIGURE_DIR / f"{NOTEBOOK_PREFIX}_final_candidate_graph.png",
    note="Final edges were selected using timing constraints, method consensus, and bootstrap stability.",
    highlight_edges=highlight_edges,
)

The final graph should be treated as a candidate structure for follow-up validation, not as a completed causal proof.

Final Graph Score Against Synthetic Truth

Because the notebook is synthetic, we can score the final graph against the known truth. This is a teaching luxury rather than something available in real case studies.

final_metrics = summarize_against_truth(final_draw_edges, "final_candidate", scenario="case_study_final")
final_metrics.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_final_candidate_metrics.csv", index=False)
display(final_metrics.round(4))

	scenario	method	reported_edges	skeleton_precision	skeleton_recall	skeleton_f1	directed_precision	directed_recall	directed_f1	extra_adjacencies	missed_adjacencies	reversed_true_edges	missed_adjacency_list	extra_adjacency_list
0	case_study_final	final_candidate	8	1.0	1.0	1.0	1.0	1.0	1.0	0	0	0

The final score quantifies how well the workflow recovered the synthetic truth. In real work, the equivalent review would be expert plausibility, stability, and validation against interventions or future data.

Report-Ready Edge Summary

The next table turns the final graph into a compact report artifact. It labels each edge by evidence strength and notes the likely role in the funnel.

def evidence_label(row):
    if row["lingam_rate"] >= 0.90 and row["methods_with_any_support"] >= 2:
        return "strong candidate"
    if row["overall_inclusion_rate"] >= 0.30:
        return "moderate candidate"
    return "review only"


edge_role_lookup = {
    ("baseline_need", "discovery_quality"): "upstream need to discovery mechanism",
    ("catalog_fit", "discovery_quality"): "catalog fit to discovery mechanism",
    ("onboarding_friction", "early_engagement"): "friction reducing early engagement",
    ("onboarding_friction", "support_contact"): "friction increasing support burden",
    ("discovery_quality", "early_engagement"): "discovery driving early usage",
    ("discovery_quality", "retention_value"): "direct discovery-to-retention path",
    ("early_engagement", "retention_value"): "engagement-to-retention path",
    ("support_contact", "retention_value"): "support burden to retention path",
}

report_edge_summary = final_edge_table.copy()
report_edge_summary["evidence_label"] = report_edge_summary.apply(evidence_label, axis=1)
report_edge_summary["business_role"] = report_edge_summary.apply(lambda row: edge_role_lookup.get((row["source"], row["target"]), "requires review"), axis=1)
report_edge_summary = report_edge_summary[
    [
        "source",
        "target",
        "evidence_label",
        "business_role",
        "overall_inclusion_rate",
        "pc_rate",
        "ges_rate",
        "lingam_rate",
        "methods_with_any_support",
    ]
]
report_edge_summary.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_report_edge_summary.csv", index=False)
display(report_edge_summary.round(3))

	source	target	evidence_label	business_role	overall_inclusion_rate	pc_rate	ges_rate	lingam_rate	methods_with_any_support
0	baseline_need	discovery_quality	strong candidate	upstream need to discovery mechanism	0.983	1.00	0.95	1.0	3
1	catalog_fit	discovery_quality	strong candidate	catalog fit to discovery mechanism	0.983	1.00	0.95	1.0	3
2	discovery_quality	early_engagement	strong candidate	discovery driving early usage	1.000	1.00	1.00	1.0	3
3	discovery_quality	retention_value	strong candidate	direct discovery-to-retention path	0.750	0.25	1.00	1.0	3
4	early_engagement	retention_value	strong candidate	engagement-to-retention path	1.000	1.00	1.00	1.0	3
5	onboarding_friction	early_engagement	strong candidate	friction reducing early engagement	0.867	0.60	1.00	1.0	3
6	onboarding_friction	support_contact	strong candidate	friction increasing support burden	0.750	1.00	0.25	1.0	3
7	support_contact	retention_value	strong candidate	support burden to retention path	1.000	1.00	1.00	1.0	3

This table is the sort of artifact that can move into a written report. It gives the edge, the evidence level, and a plain-language role.

Case-Study Limitations

A final discovery notebook should include limitations directly beside the result. This cell creates a concise limitations table.

limitations_table = pd.DataFrame(
    [
        {
            "limitation": "Observational graph discovery is not causal proof",
            "practical_response": "Use the final graph to prioritize experiments, natural experiments, or effect estimation.",
        },
        {
            "limitation": "Hidden confounding can create misleading adjacencies",
            "practical_response": "Use FCI diagnostics, sensitivity checks, richer covariates, or study designs that address omitted causes.",
        },
        {
            "limitation": "Timing constraints are domain assumptions",
            "practical_response": "Document why each tier is plausible and revisit tiers when measurement timing changes.",
        },
        {
            "limitation": "LiNGAM depends on linear non-Gaussian assumptions",
            "practical_response": "Check residuals, compare with nonparametric methods, and avoid overclaiming directions from one method.",
        },
        {
            "limitation": "Bootstrap row resampling is a simple stability check",
            "practical_response": "For temporal or clustered data, use block, user-level, or time-split stability checks instead.",
        },
        {
            "limitation": "Synthetic truth is available only in this tutorial",
            "practical_response": "In real applications, replace truth scoring with domain review and validation on new data or interventions.",
        },
    ]
)
limitations_table.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_limitations.csv", index=False)
display(limitations_table)

	limitation	practical_response
0	Observational graph discovery is not causal proof	Use the final graph to prioritize experiments,...
1	Hidden confounding can create misleading adjac...	Use FCI diagnostics, sensitivity checks, riche...
2	Timing constraints are domain assumptions	Document why each tier is plausible and revisi...
3	LiNGAM depends on linear non-Gaussian assumptions	Check residuals, compare with nonparametric me...
4	Bootstrap row resampling is a simple stability...	For temporal or clustered data, use block, use...
5	Synthetic truth is available only in this tuto...	In real applications, replace truth scoring wi...

The limitations are not an apology for the analysis. They are part of the analysis. Causal discovery is most useful when its uncertainty is visible.

Final Workflow Checklist

The checklist below summarizes the end-to-end workflow in reusable form.

workflow_checklist = pd.DataFrame(
    [
        {"step": "Define graph target", "completed_here": True, "artifact": "case-study question and true teaching graph"},
        {"step": "Create variable dictionary", "completed_here": True, "artifact": "16_variable_dictionary.csv"},
        {"step": "Audit data quality", "completed_here": True, "artifact": "16_data_audit.csv and diagnostic figures"},
        {"step": "Encode domain constraints", "completed_here": True, "artifact": "16_timing_constraints.csv"},
        {"step": "Run candidate algorithms", "completed_here": True, "artifact": "16_candidate_method_edges.csv"},
        {"step": "Compare graph layers", "completed_here": True, "artifact": "16_candidate_method_metrics.csv"},
        {"step": "Check tuning sensitivity", "completed_here": True, "artifact": "16_tuning_sensitivity.csv"},
        {"step": "Check bootstrap stability", "completed_here": True, "artifact": "16_edge_stability.csv"},
        {"step": "Screen hidden-confounding risk", "completed_here": True, "artifact": "16_fci_edges.csv and hidden stress table"},
        {"step": "Report final candidate graph", "completed_here": True, "artifact": "16_final_candidate_edges.csv"},
    ]
)
workflow_checklist.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_workflow_checklist.csv", index=False)
display(workflow_checklist)

	step	completed_here	artifact
0	Define graph target	True	case-study question and true teaching graph
1	Create variable dictionary	True	16_variable_dictionary.csv
2	Audit data quality	True	16_data_audit.csv and diagnostic figures
3	Encode domain constraints	True	16_timing_constraints.csv
4	Run candidate algorithms	True	16_candidate_method_edges.csv
5	Compare graph layers	True	16_candidate_method_metrics.csv
6	Check tuning sensitivity	True	16_tuning_sensitivity.csv
7	Check bootstrap stability	True	16_edge_stability.csv
8	Screen hidden-confounding risk	True	16_fci_edges.csv and hidden stress table
9	Report final candidate graph	True	16_final_candidate_edges.csv

This checklist is the reusable template. Future case studies can swap in real data while keeping the same analysis structure.

Artifact Manifest

The final cell lists every dataset, table, and figure saved by this notebook.

artifact_paths = sorted(
    list(DATASET_DIR.glob(f"{NOTEBOOK_PREFIX}_*"))
    + list(TABLE_DIR.glob(f"{NOTEBOOK_PREFIX}_*"))
    + list(FIGURE_DIR.glob(f"{NOTEBOOK_PREFIX}_*"))
    + list(REPORT_DIR.glob(f"{NOTEBOOK_PREFIX}_*"))
)
artifact_manifest = pd.DataFrame(
    [
        {
            "artifact_type": path.parent.name,
            "path": str(path.relative_to(OUTPUT_DIR)),
            "size_kb": round(path.stat().st_size / 1024, 2),
        }
        for path in artifact_paths
    ]
)
artifact_manifest.to_csv(TABLE_DIR / f"{NOTEBOOK_PREFIX}_artifact_manifest.csv", index=False)
display(artifact_manifest)

	artifact_type	path	size_kb
0	datasets	datasets/16_case_study_observed_data.csv	121.34
1	datasets	datasets/16_hidden_context_stress_data.csv	121.27
2	figures	figures/16_candidate_method_metrics.png	48.26
3	figures	figures/16_correlation_matrix.png	149.22
4	figures	figures/16_directlingam_candidate_graph.png	90.34
5	figures	figures/16_edge_stability.png	148.35
6	figures	figures/16_final_candidate_graph.png	93.92
7	figures	figures/16_ges_bic_candidate_graph.png	89.08
8	figures	figures/16_marginal_distributions.png	166.80
9	figures	figures/16_pc_tier_constrained_candidate_graph...	91.63
10	figures	figures/16_true_case_study_graph.png	92.23
11	figures	figures/16_tuning_sensitivity.png	55.68
12	tables	tables/16_bootstrap_edges.csv	48.23
13	tables	tables/16_bootstrap_metrics.csv	8.08
14	tables	tables/16_candidate_method_edges.csv	2.53
15	tables	tables/16_candidate_method_metrics.csv	0.90
16	tables	tables/16_correlation_matrix.csv	1.07
17	tables	tables/16_data_audit.csv	0.76
18	tables	tables/16_edge_consensus.csv	1.89
19	tables	tables/16_edge_stability.csv	1.29
20	tables	tables/16_fci_edges.csv	0.52
21	tables	tables/16_final_candidate_edges.csv	0.78
22	tables	tables/16_final_candidate_metrics.csv	0.29
23	tables	tables/16_hidden_stress_edges.csv	2.61
24	tables	tables/16_hidden_stress_metrics.csv	0.73
25	tables	tables/16_limitations.csv	0.91
26	tables	tables/16_package_versions.csv	0.08
27	tables	tables/16_report_edge_summary.csv	0.97
28	tables	tables/16_timing_constraints.csv	0.27
29	tables	tables/16_true_edges.csv	0.37
30	tables	tables/16_tuning_sensitivity.csv	2.32
31	tables	tables/16_variable_dictionary.csv	0.67
32	tables	tables/16_workflow_checklist.csv	0.63

The case study is complete. The important pattern is not the specific synthetic graph; it is the disciplined workflow: define, audit, constrain, estimate, stress-test, select, and report with caveats.
